PRODUCTAutomatic Titrator
Product
-
Electrodes for Potentiometric Titrators
For aqueous, non aqueous, acid-base, redox, polarization and chelate titration.
-
Automatic Potentiometric Titrator
AT-710M
The large color TFT-LCD touch panel (8.4-inch) makes it a pleasure to operate and provides a graphing visual to monitor results in real time.
Up to 4 titrators (from our "710" Potentiometric, Karl Fischer and/or Hybrid range) can be … -
Automatic Potentiometric Titrator
AT-710S
Large color TFT-LCD with a touch panel (8.4-inch) enables easy key entry.
Monitoring temperature during titration ensures safe measurements. -
Automatic Potentiometric Titrator
AT-710B
High-performance titrator at a lower price.
Software
-
Software for Automatric Potentiometric Titrators
AT-Win
AT-Win software enables your PC to control KEM’s Automatic Potentiometric Titrators e.g., AT-710B, AT-700, AT-510 or AT-500N.
When it is connected to AT-710B, the functions equivalent to AT-710M will be available. -
Analysis Software for Titration Results
Tview6
This software allows to capture the data stored in the titrators (AT-710B,AT-700,MKA-610, MKC-610, AT-610 and AT-510) on a personal computer through CF memory card to manage/analyze titration results.
-
Data Acquisition Software
SOFT-CAP
Measurement results of KEM instrument are directly downloaded to your personal computer for further data processing
Optional accessories
-
Electrodes for Potentiometric Titrators
For aqueous, non aqueous, acid-base, redox, polarization and chelate titration.
-
Piston burette
APB-610
Instrument to allow manual titration or constant dosing of reagent solvents.
Additional power burette for Automatic Potentiometric Titrator or Multiple Sample Changer (CHA-600).
The titration nozzle features scattering-prevent… -
Multiple Sample Changer
CHA-740
Multi-specimen changer for AT-710M, AT-710S, AT-710B+AT-Win that can titrate 24 samples continuously.
-
Multiple Sample Changer
CHA-760
Multi-specimen changer for AT-710M, AT-710S, AT-710B+AT-Win that can titrate 47 samples continuously.
-
Multiple Sample Changer
CHA-700
6 or 11 samples can be loaded for continuous measurement with connection of AT-710M , AT-710S , AT-710B and AT-700 Automatic Potentiometric titrator.
-
Multiple Sample Changer
CHA-600
The sample changer exclusive for AT-710M ,
AT-710S ,
AT-710B+AT-Win ,
AT-610 and AT-510 Automatic Potentiometric Titrators
Capable to make continuous measurements on 12 or 18 samples -
Preamplifier
Preamplifier for various titrations such as polarization titration, photometric titration, and conductivity titration.
※Top photo: For AT-610, Bottom photo: For AT-510, AT-500N -
Micro Titration Cell Unit
MTA-118
The ideal solution for samples, which are available on small quantities only.
-
Sealed Cell Flask Assembly
SCU-118
This assembly is the titration flask unit for air cutting off titration or titration under some gases.
-
Particle Charge Detection System
PCD-500
The PCD-500 detects equivalence point by streaming potential while titrating colloidal sample solution like high polymer coagulant, surface active agents, paints and foods with high molecular charged particles existing in it.
-
Burette unit
1mL : EBU-610-01B
5mL : EBU-610-05B, EBU-710-05B
10mL : EBU-610-10B, EBU-710-10B
20mL : EBU-610-20B(Standard), EBU-710-20B(Standard)
50mL : EBU-610-50B
Left: EBU-610 (available in 1, 5, 10, 20, and… -
Magnetic Stirrer
MS-610 / MS-710
The rotor in the vessel rotates in an electromagnetic manner.
-
Propeller Stirrer
The propeller stirrer is attached to magnetic stirrer stand or titration stand.
No need for rotor, economic benefits especially used with multiple sample changers. -

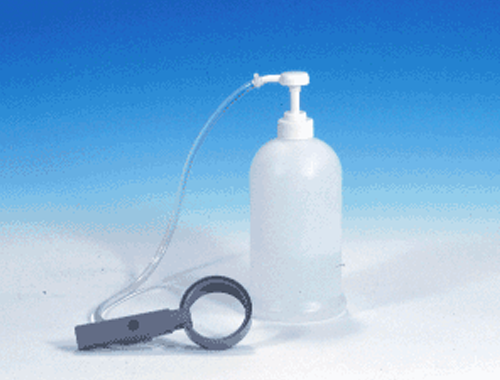

Manual Cleaning Unit
MW-510
Attached to the stand of magnetic stirrer or titration stand, it is used for manual cleaning of titration nozzle and electrode.
Compatibility of Main units and Options
| AT-710M | AT-710S | AT-710B | AT-700 | AT-610 | AT-510 | |
|---|---|---|---|---|---|---|
| APB-610 | Yes | Yes | Yes | Yes | Yes | Yes |
| APB-600 | Yes | Yes | Yes | Yes | Yes | Yes |
| APB-620 | No | No | No | No | Yes | Yes |
| CHA-760 | Yes | Yes | No （Yes*1） |
No | No | No |
| CHA-740 | Yes | Yes | No （Yes*1） |
No | No | No |
| CHA-700 | Yes | Yes | Yes | Yes | No | No |
| CHA-600 | Yes | Yes | No （Yes*1） |
No | Yes | Yes |
| STD-610 | No | No | No | No | Yes | No |
| POT-610 | No | No | No | No | Yes | No |
| PTA-610 | No | No | No | No | Yes | No |
| CMT-610 | No | No | No | No | Yes | No |
| TET-610 | No | No | No | No | Yes | No |
| STD-510 | No | No | No | No | No | Yes |
| POT-510 | No | No | No | No | No | Yes |
| PTA-510 | No | No | No | No | No | Yes |
| CMT-510 | No | No | No | No | No | Yes |
| TET-510 | No | No | No | No | No | Yes |
| MTA-118 | Yes*2) | Yes*2) | Yes*2) | Yes*2) | Yes | Yes |
| SCU-118 | Yes*2) | Yes*2) | Yes*2) | Yes*2) | Yes | Yes |
| PCD-500 | Yes | Yes | Yes | Yes | Yes | Yes |
| EBU-710 | Yes | Yes | Yes | No | No | No |
| EBU-610 | No | No | No | No | Yes | Yes |
| Auto Dispenser | Yes | Yes | Yes | Yes | No | No |
| MS-710 | Yes | Yes | Yes | Yes | No | No |
| MS-610 | No | No | No | No | △Man*1) | △Man*1) |
| Propeller Stirrer | Yes | Yes | Yes | Yes | Yes | Yes |
| MW-510 | Yes*2) | Yes*2) | Yes*2) | No | Yes | Yes |
| KF-510 | No | No | No | No | No | Yes |
| COD Titration Unit | Yes*2) | Yes*2) | Yes*2) *1） | No | No | No |
| COD-510 | No | No | No | No | Yes | Yes |
| CF card | No | No | No | No | Yes | × |
| PC card | No | No | No | No | No | Yes |
| SOFT-PCR | No | No | No | No | No | Yes |
Yes : Compatible
Man : Can be connected and operated manually
No : Not Compatible
*1 : Can be connected if AT-Win is used
*2 : Can be connected if APB-610, APB-600, APB-620, APB-510, APB-410 is used
*3 : Can be connected if MS-710 is used
Catalog
■General-Catalog.pdf
■Electrodes for Potentiometric Titrators.pdf
■Automatic Potentiometric Titrator AT-710.pdf
■KEM-SET-for-Petrochemical.pdf
■KEM-SET-for-Palm-Oil.pdf
■KEM-SET-for-Food.pdf
■KEM-SET-for-Cosmetics.pdf
■KEM-SET-for-Beverage.pdf
■Software for Titrators (Multi-channel Software) AT-Win.pdf
