Preamplifier for various titrations such as polarization titration, photometric titration, and conductivity titration.

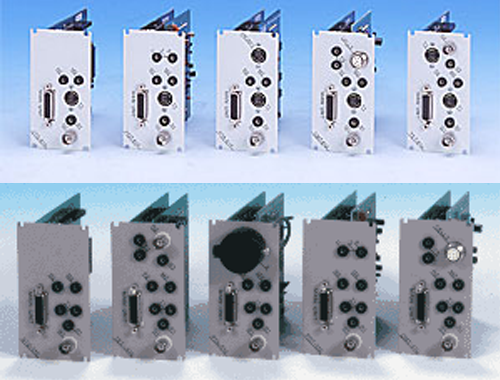

※Top photo: For AT-610, Bottom photo: For AT-510, AT-500N
PRODUCT
Preamplifier
Feature
- Select a preamplifier depending on the type of titration
Specifications
For AT-610
| Model | Detector number1 | Detector number2 | Detector number3 |
|---|---|---|---|
| STD-610 Standard |
pH：0-14 | 0-±2000mV | |
| PTA-610 Photometric Titrator |
pH：0-14 | 0-±2000mV | Transmittance range: 0-120%T Absorbance : 0-9.999Abs |
| POT-610 Polarization Titrator |
pH：0-14 | 0-±2000mV | Regulated current polar potential titration Loaded current: 0-20μA Regulated voltage polar current titration Voltage : 0-500mV |
| CMT-610 Conductmetric Titration |
pH：0-14 | 0-±2000mV | 0-100μS 0-1000μS 0-10000μS |
| TET-610 pH dual input |
pH：0-14 | 0-±2000mV | pH：0-14 |
For AT-510, AT-500N, AT-420
| Model | Detector number1 | Detector number2 | Detector number3 |
|---|---|---|---|
| STD-510 Standard |
pH：0-14 | 0-±2000mV | |
| PTA-510 Photometric Titrator |
pH：0-14 | 0-±2000mV | Transmittance range: 0-120%T Absorbance : 0-9.999Abs |
| POT-510 Polarization Titrator |
pH：0-14 | 0-±2000mV | Regulated current polar potential titration Loaded current: 0-20μA Regulated voltage polar current titration Voltage : 0-500mV |
| Discontinued Conductmetric Titration |
pH：0-14 | 0-±2000mV | 0-100μS 0-1000μS 0-10000μS |
| Discontinued pH dual input |
pH：0-14 | 0-±2000mV | pH：0-14 |
